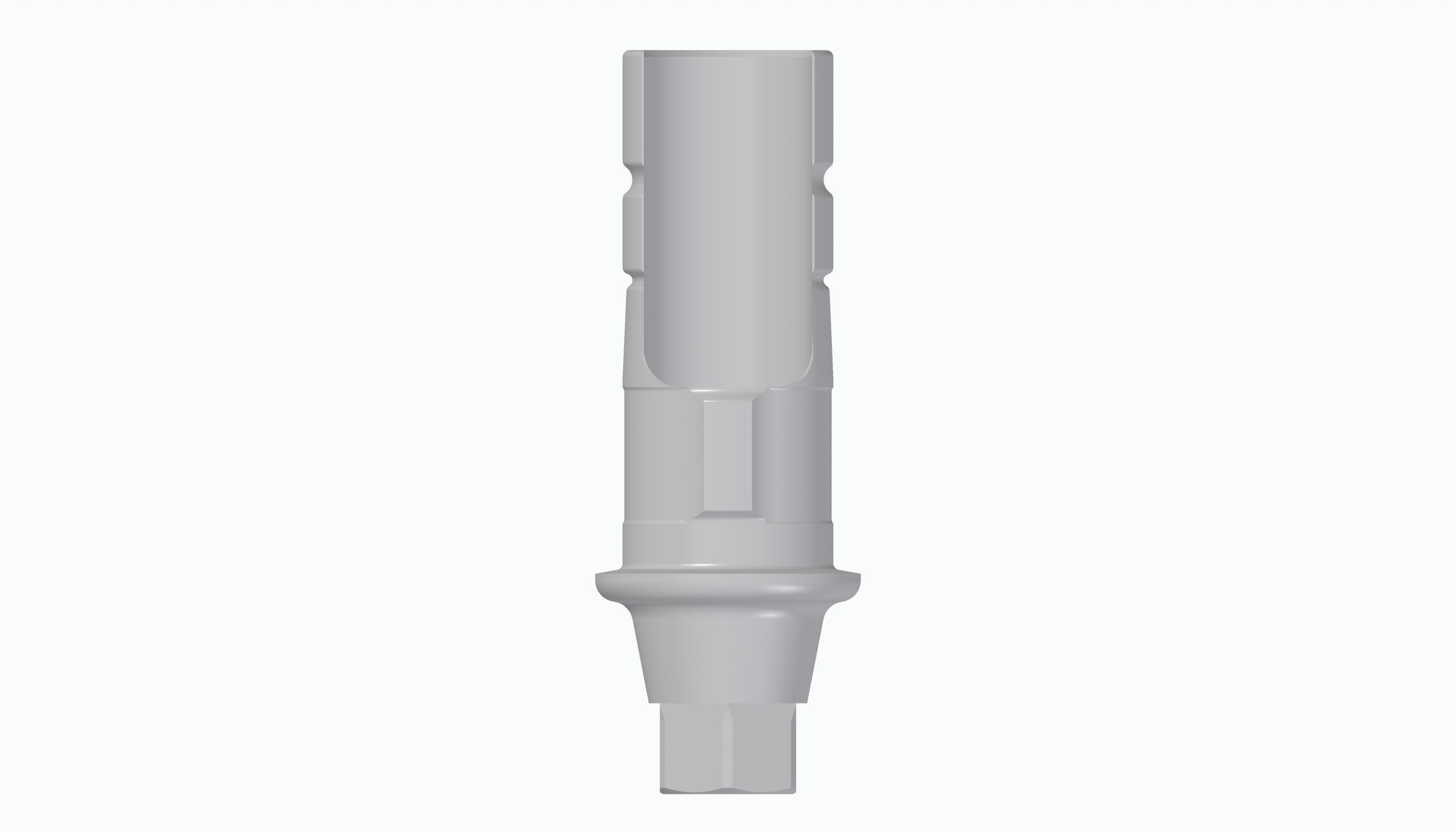

X3 Link KR

Base BT Link Multi Lenght KR H1mm Ø4.1mm for following BTK implant lines:

  • Isy+
  • Isykone
  • BT Safe
SKU: 248KR1A0 Category:

Description

Multi-height titanium base for cement-retained, with a KR connection, H1mm Ø4.1mm for the following BTK implant lines:
Isy +
Isykone
BT Safe.

This base is packaged with the standard retentive screw (code 690NA083) or, on request, with the BT GRIP retention screw (code 690NA239) for the angled prosthesis, which allows to correct the implant axis bringing it back to a more correct prosthetic position, in order to improve functionality and aesthetics.

The BT GRIP screw must be used with the BT GRIP screwdriver (code 530JD036 or 530JD037), which allows screwing up to an angle of 25°. The screwdriver, 15 mm or 30 mm long, has a controlled breaking point which ensures that, in case of excessive tightening, the screw will not be damaged while the screwdriver will fracture in that point.

The X3 Link allows two cutting options and 3 different cement heights: 4.5, 6 and 8 mm. It can be used with the KR implant library, downloadable in the CAD-CAM section of the site, using the respective KR scan-abutments (code 351KR1A0 and 352KR1A0).

The X3 Link has an anti-rotational engagement and a flat wall to increase retention.

The TiN coating, applied to the retention screw, reduces the risk of loosening, avoids lateral deformation of the bed, increases the preload and resistance to fractures and, in addition, reduces bacterial adhesion.link per tecnica da incollaggio.

Additional information
